Part Details for VIPER0PHDTR by STMicroelectronics
Results Overview of VIPER0PHDTR by STMicroelectronics
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
VIPER0PHDTR Information
VIPER0PHDTR by STMicroelectronics is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for VIPER0PHDTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-VIPER0PHDTRDKR-ND
|
DigiKey | IC OFFLINE SWITCH MULT TOP 16SO Min Qty: 1 Container: Digi-Reel |
4798 Digi-Reel® |
|
$0.6576 / $1.2800 | Buy Now |
|
DISTI #
497-VIPER0PHDTRCT-ND
|
DigiKey | IC OFFLINE SWITCH MULT TOP 16SO Min Qty: 1 Container: Cut Tape |
4798 Cut Tape |
|
$0.6576 / $1.2800 | Buy Now |
|
DISTI #
73595689
|
Verical | AC to DC Switching Converter Flyback 4.5V 132kHz T/R 16-Pin SO N RoHS: Compliant Min Qty: 29 Package Multiple: 1 Date Code: 2343 | Americas - 2398 |
|
$0.4298 | Buy Now |
|
DISTI #
511-VIPER0PHDTR
|
Mouser Electronics | AC/DC Converters VIPerPlus family: Zero-power off-line high voltage converter RoHS: Compliant | 2023 |
|
$0.5980 / $1.2800 | Buy Now |
|
DISTI #
V72:2272_16518919
|
Arrow Electronics | AC to DC Switching Converter Flyback 4.5V 132kHz T/R 16-Pin SO N COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 99 Weeks Date Code: 2343 Container: Cut Strips | Americas - 2398 |
|
$0.4298 | Buy Now |
|
|
STMicroelectronics | VIPerPlus family: Zero-power off-line high voltage converter COO: Italy Min Qty: 1 | 2023 |
|
$0.6700 / $1.2800 | Buy Now |
|
DISTI #
V72:2272_16518919
|
Arrow Electronics | AC to DC Switching Converter Flyback 4.5V 132kHz T/R 16-Pin SO N COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 99 Weeks Date Code: 2343 Container: Cut Strips | Americas - 2398 |
|
$0.4298 | Buy Now |
|
DISTI #
73595689
|
Verical | AC to DC Switching Converter Flyback 4.5V 132kHz T/R 16-Pin SO N COO: Thailand RoHS: Compliant Min Qty: 29 Package Multiple: 1 Date Code: 2343 | Americas - 2398 |
|
$0.4298 | Buy Now |
|
DISTI #
73595689
|
Verical | AC to DC Switching Converter Flyback 4.5V 132kHz T/R 16-Pin SO N COO: Thailand RoHS: Compliant Min Qty: 29 Package Multiple: 1 Date Code: 2343 | Americas - 2398 |
|
$0.4298 | Buy Now |
|
DISTI #
V72:2272_16518919
|
Arrow Electronics | AC to DC Switching Converter Flyback 4.5V 132kHz T/R 16-Pin SO N COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 99 Weeks Date Code: 2343 Container: Cut Strips | Americas - 2398 |
|
$0.4298 | Buy Now |
US Tariff Estimator: VIPER0PHDTR by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
VIPER0PHDTR CAD Models
-
Part Symbol
-
Footprint
-

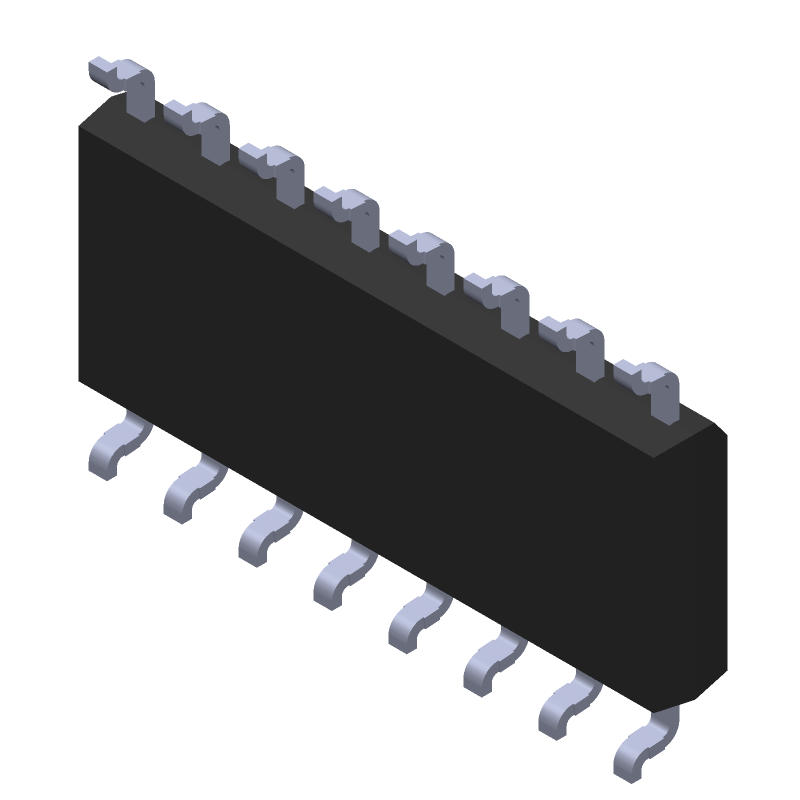

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
VIPER0PHDTR Part Data Attributes
|
|
VIPER0PHDTR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
VIPER0PHDTR
STMicroelectronics
Switching Regulator, Current-mode, 132kHz Switching Freq-Max, PDSO16
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Sop-16 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Factory Lead Time | 18 Weeks | |
| Analog IC - Other Type | Switching Regulator | |
| Control Mode | Current-Mode | |
| Control Technique | Pulse Width Modulation | |
| Input Voltage-Max | 30 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 9 V | |
| JESD-30 Code | R-PDSO-G16 | |
| Length | 9.9 Mm | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | Not Specified | |
| Seated Height-Max | 1.75 Mm | |
| Supply Current-Max (Isup) | 1.5 Ma | |
| Surface Mount | Yes | |
| Switcher Configuration | Buck-Boost | |
| Switching Frequency-Max | 132 Khz | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | Not Specified | |
| Width | 3.9 Mm |
VIPER0PHDTR Frequently Asked Questions (FAQ)
-
A good PCB layout for VIPER0PHDTR involves keeping the high-frequency switching nodes (e.g., drain and source pins) away from sensitive analog circuits, using a solid ground plane, and minimizing trace lengths and loops to reduce EMI.
-
To ensure reliable startup and shutdown, make sure to follow the recommended startup and shutdown sequences outlined in the datasheet, and use a soft-start circuit to limit inrush current and prevent voltage spikes.
-
Key considerations for thermal management include providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. The maximum junction temperature (Tj) should not exceed 150°C.
-
To optimize for low standby power consumption, use the device's built-in low-power modes, minimize the number of active circuits during standby, and consider using an external power switch to completely disconnect the load during standby.
-
Recommended ESD protection measures include using ESD protection diodes, following proper handling and storage procedures, and implementing ESD protection circuits in the PCB design.
