W9412G6KH-5 Information
W9412G6KH-5 by Winbond Electronics Corp is a DRAM.
DRAMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for W9412G6KH-5
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
W9412G6KH-5-ND
|
DigiKey | IC DRAM 128MBIT SSTL2 66TSOP II Min Qty: 1 Lead time: 24 Weeks Container: Tray | Temporarily Out of Stock |
|
$1.5655 / $2.0800 | Buy Now |
|
DISTI #
454-W9412G6KH-5
|
Mouser Electronics | DRAM 128Mb DDR SDRAM x16 200MHz, 46nm RoHS: Compliant | 305 |
|
$1.4800 / $2.2300 | Buy Now |
|
|
NAC | 128Mb DDR SDRAM x16 200MHz, 46nm, TSOPII 66 Package RoHS: Compliant Min Qty: 108 Package Multiple: 108 | 0 |
|
$1.0500 / $1.1600 | Buy Now |
US Tariff Estimator: W9412G6KH-5 by Winbond Electronics Corp
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for W9412G6KH-5

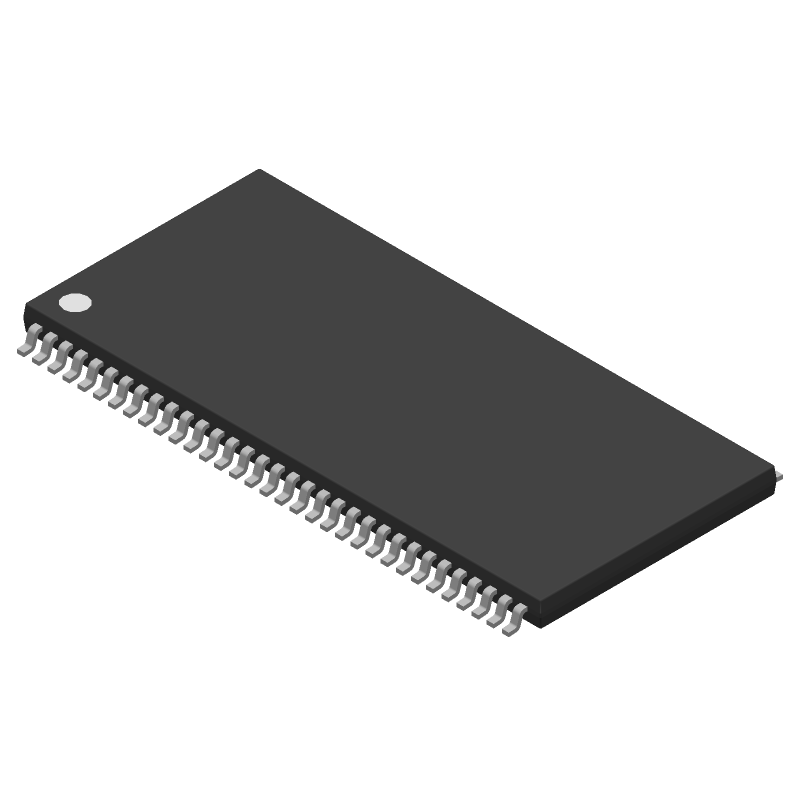

W9412G6KH-5 CAD Models
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
W9412G6KH-5 Part Data Attributes
|
|
W9412G6KH-5
Winbond Electronics Corp
Buy Now
Datasheet
|
Compare Parts:
W9412G6KH-5
Winbond Electronics Corp
DDR DRAM, 8MX16, 0.7ns, CMOS, PDSO66, TSOP2-66
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Tsop2, | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.02 | |
| Access Mode | Four Bank Page Burst | |
| Access Time-Max | 0.7 Ns | |
| Additional Feature | Auto/Self Refresh | |
| JESD-30 Code | R-PDSO-G66 | |
| JESD-609 Code | e3 | |
| Length | 22.22 Mm | |
| Memory Density | 134217728 Bit | |
| Memory IC Type | Ddr1 Dram | |
| Memory Width | 16 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Terminals | 66 | |
| Number of Words | 8388608 Words | |
| Number of Words Code | 8000000 | |
| Operating Mode | Synchronous | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Organization | 8mx16 | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSOP2 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.2 Mm | |
| Self Refresh | Yes | |
| Supply Voltage-Max (Vsup) | 2.7 V | |
| Supply Voltage-Min (Vsup) | 2.3 V | |
| Supply Voltage-Nom (Vsup) | 2.5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Commercial | |
| Terminal Finish | Tin | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Width | 10.16 Mm |
