AD5392BSTZ-5 by: Analog Devices Inc

8-Channel 3 V/5 V Serial Input Single-Supply 14-Bit Voltage-Output

Part Details for AD5392BSTZ-5 by Analog Devices Inc

Overview of AD5392BSTZ-5 by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

Price & Stock for AD5392BSTZ-5

Part # Distributor Description Stock Price Buy
DISTI # 60AK6456
Newark Dac, 14Bit, Lqfp-52, -40 To 85Deg C, Resolution (Bits):14Bit, Sampling Rate:-, Data Interface:3 Wire, Dsp, Microwire, Qspi, Serial, Spi, Supply Voltage Range:4.5V To 5.5V, Adc/Dac Case Style:Lqfp, No. Of Pins:52Pins Rohs Compliant: Yes |Analog Devices AD5392BSTZ-5 Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 59
  • 1 $50.3000
  • 5 $48.6200
  • 10 $46.9400
  • 25 $44.9600
  • 50 $43.5700
  • 100 $40.7500
$40.7500 / $50.3000 Buy Now
Analog Devices Inc 8-Chn 5V Single Supply 14-Bit Min Qty: 1 Package Multiple: 1 0
  • 1 $48.3800
  • 10 $45.1360
  • 25 $43.2440
  • 1,000 $24.5400
$24.5400 / $48.3800 Buy Now
DISTI # AD5392BSTZ-5
Richardson RFPD CONVERTER - DAC RoHS: Compliant Min Qty: 18 0
  • 18 $38.9900
  • 25 $37.3900
  • 100 $36.3900
  • 500 $35.4500
  • 1,000 $35.0000
$35.0000 / $38.9900 Buy Now

Part Details for AD5392BSTZ-5

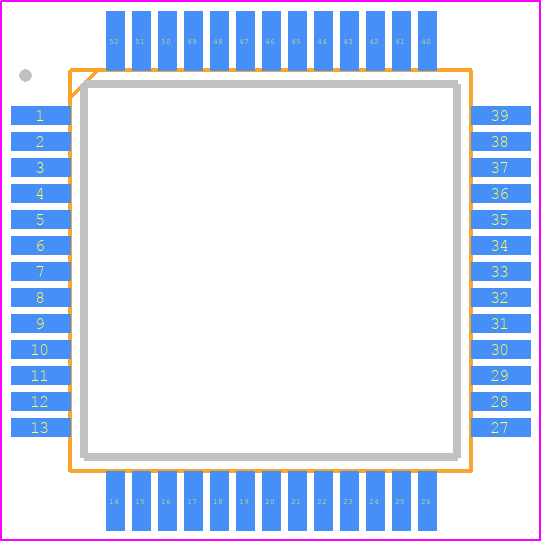

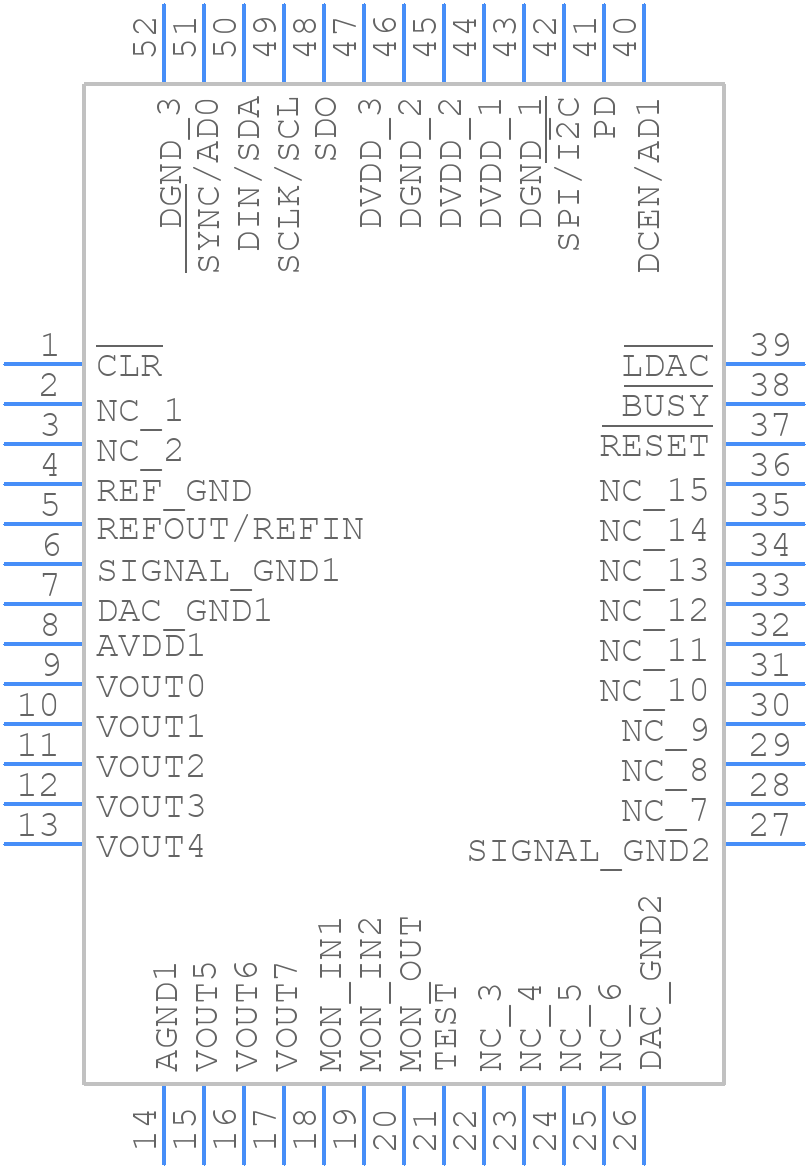

AD5392BSTZ-5 CAD Models

AD5392BSTZ-5 Part Data Attributes

AD5392BSTZ-5 Analog Devices Inc
Buy Now Datasheet
Compare Parts:
AD5392BSTZ-5 Analog Devices Inc 8-Channel 3 V/5 V Serial Input Single-Supply 14-Bit Voltage-Output
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code QFP
Package Description LQFP-52
Pin Count 52
Manufacturer Package Code ST-52
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Analog Devices
Analog Output Voltage-Max 5.5 V
Analog Output Voltage-Min
Converter Type D/A CONVERTER
Input Bit Code BINARY
Input Format SERIAL
JESD-30 Code S-PQFP-G52
JESD-609 Code e3
Length 12 mm
Linearity Error-Max (EL) 0.0183%
Moisture Sensitivity Level 3
Number of Bits 14
Number of Functions 1
Number of Terminals 52
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code LQFP
Package Equivalence Code QFP52,.47SQ
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.6 mm
Settling Time-Max 8 µs
Settling Time-Nom (tstl) 3 µs
Supply Current-Max 0.475 mA
Supply Voltage-Nom 5 V
Surface Mount YES
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 12 mm
