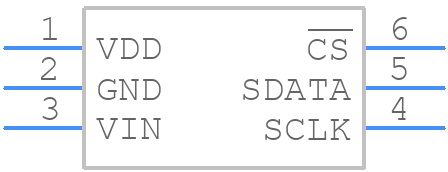

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
8-Bit, 1 MSPS, Low Power Successive Approximation ADC Which Operates From A Single 2.35 V to 5.25 V Power Supply
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
60AK6889
|
Newark | Adc, 8Bit, 1Msps, Sot-23-6, Resolution (Bits):8Bit, Sampling Rate:1Msps, Input Channel Type:Single Ended, Data Interface:Microwire, Qspi, Spi, Supply Voltage Type:Single, Supply Voltage Min:2.7V, Supply Voltage Max:5.25V Rohs Compliant: Yes |Analog Devices AD7478ARTZ-500RL7 Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 5700 |
|
$2.7400 / $3.9200 | Buy Now |
DISTI #
505-AD7478ARTZ-500RL7CT-ND
|
DigiKey | IC ADC 8BIT SAR SOT23-6 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
909 In Stock |
|
$1.8229 / $3.7700 | Buy Now |
DISTI #
584-AD7478ARTZ-500R7
|
Mouser Electronics | Analog to Digital Converters - ADC 8-BIT ADC IN SOT I.C. RoHS: Compliant | 1302 |
|
$1.7700 / $3.7700 | Buy Now |
|
Analog Devices Inc | 8-BIT ADC IN SOT I.C. Min Qty: 1 Package Multiple: 500 | 682 |
|
$1.8229 / $3.7700 | Buy Now |
|
Ameya Holding Limited | AD7478ARTZ-500RL7 , 8 位-Bit ADC, Serial (SPI/QSPI/Microwire)接口, 6针 SOT-23封装 | 682 |
|
RFQ | |
DISTI #
4016535
|
element14 Asia-Pacific | ADC, 8BIT, 1MSPS, SOT-23-6 RoHS: Compliant Min Qty: 1 Container: Cut Tape | 5700 |
|
$1.8219 / $3.9598 | Buy Now |
DISTI #
4016535RL
|
element14 Asia-Pacific | ADC, 8BIT, 1MSPS, SOT-23-6 RoHS: Compliant Min Qty: 100 Container: Reel | 5700 |
|
$1.8219 / $2.9239 | Buy Now |
DISTI #
4016535RL
|
Farnell | ADC, 8BIT, 1MSPS, SOT-23-6 RoHS: Compliant Min Qty: 100 Lead time: 11 Weeks, 1 Days Container: Reel | 5700 |
|
$1.8187 / $2.7468 | Buy Now |
DISTI #
4016535
|
Farnell | ADC, 8BIT, 1MSPS, SOT-23-6 RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Cut Tape | 5700 |
|
$1.8187 / $3.7377 | Buy Now |
|
Win Source Electronics | IC ADC 8BIT 1MSPS LP SOT23-6 | 22200 |
|
$2.2610 / $3.3920 | Buy Now |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
AD7478ARTZ-500RL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD7478ARTZ-500RL7
Analog Devices Inc
8-Bit, 1 MSPS, Low Power Successive Approximation ADC Which Operates From A Single 2.35 V to 5.25 V Power Supply
|
Pbfree Code | No | |
Rohs Code | Yes | |
Part Life Cycle Code | Active | |
Ihs Manufacturer | ANALOG DEVICES INC | |
Part Package Code | SOIC | |
Package Description | PLASTIC, MO-178AB, SOT-23, 6 PIN | |
Pin Count | 6 | |
Manufacturer Package Code | RJ-6 | |
Reach Compliance Code | compliant | |
ECCN Code | EAR99 | |
HTS Code | 8542.39.00.01 | |
Samacsys Manufacturer | Analog Devices | |
Analog Input Voltage-Max | 3 V | |
Analog Input Voltage-Min | ||
Conversion Time-Max | 0.8 µs | |
Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
JESD-30 Code | R-PDSO-G6 | |
JESD-609 Code | e4 | |
Length | 2.9 mm | |
Linearity Error-Max (EL) | 0.1953% | |
Moisture Sensitivity Level | 1 | |
Number of Analog In Channels | 1 | |
Number of Bits | 8 | |
Number of Functions | 1 | |
Number of Terminals | 6 | |
Operating Temperature-Max | 85 °C | |
Operating Temperature-Min | -40 °C | |
Output Bit Code | BINARY | |
Output Format | SERIAL | |
Package Body Material | PLASTIC/EPOXY | |
Package Code | LSSOP | |
Package Equivalence Code | TSOP6,.11,37 | |
Package Shape | RECTANGULAR | |
Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
Peak Reflow Temperature (Cel) | 260 | |
Qualification Status | Not Qualified | |
Sample Rate | 1 MHz | |
Sample and Hold / Track and Hold | TRACK | |
Seated Height-Max | 1.45 mm | |
Supply Voltage-Nom | 3 V | |
Surface Mount | YES | |
Technology | CMOS | |
Temperature Grade | INDUSTRIAL | |
Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
Terminal Form | GULL WING | |
Terminal Pitch | 0.95 mm | |
Terminal Position | DUAL | |
Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
Width | 1.6 mm |
