AD7994BRUZ-0 Information
AD7994BRUZ-0 by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD7994BRUZ-0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK7174
|
Newark | Adc, 12-Bit, 188Ksps, Tssop-16, Resolution (Bits):12Bit, Sampling Rate:188Ksps, Input Channel Type:Single Ended, Data Interface:2 Wire, I2C, Supply Voltage Type:Single, Supply Voltage Min:2.7V, Supply Voltage Max:5.5V Rohs Compliant: Yes |Analog Devices AD7994BRUZ-0 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 36 |
|
$7.5200 / $14.6100 | Buy Now |
|
DISTI #
505-AD7994BRUZ-0-ND
|
DigiKey | IC ADC 12BIT SAR 16TSSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
209 In Stock |
|
$7.9423 / $12.9100 | Buy Now |
|
DISTI #
584-AD7994BRUZ-0
|
Mouser Electronics | Analog to Digital Converters - ADC 4 Channel,12Bit ADC - I2C Interface I.C. RoHS: Compliant | 656 |
|
$7.3000 / $14.1800 | Buy Now |
|
|
Analog Devices Inc | 4 Channel,12Bit ADC - I2C Inte Package Multiple: 96 | 42 |
|
$5.3500 / $14.1800 | Buy Now |
|
|
Bristol Electronics | 62 |
|
RFQ | ||
|
|
Quest Components | 4-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO16 | 27 |
|
$11.1925 / $13.6125 | Buy Now |
|
|
Quest Components | 4-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO16 | 1 |
|
$11.7674 | Buy Now |
|
DISTI #
AD7994BRUZ-0
|
TME | IC: A/D converter, Ch: 4, 12bit, 188ksps, 2.7÷5.5V, TSSOP16, ±1LSB Min Qty: 1 | 0 |
|
$7.7400 / $11.6000 | RFQ |
|
DISTI #
AD7994BRUZ-0
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 1 | 0 |
|
$8.1600 / $8.7600 | Buy Now |
|
|
Chip Stock | QuadChannelSingleADCSAR188ksps12-bitSerial16-PinTSSOPTube | 220 |
|
RFQ |
US Tariff Estimator: AD7994BRUZ-0 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AD7994BRUZ-0
AD7994BRUZ-0 CAD Models
-

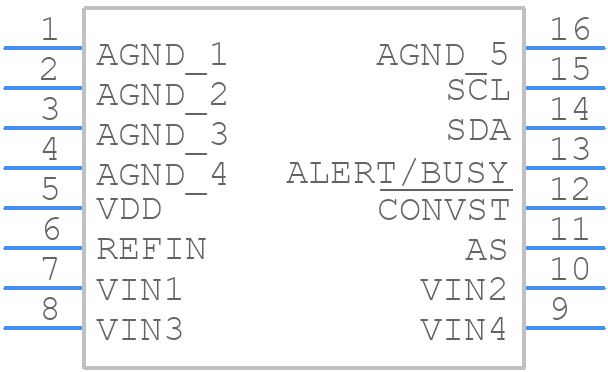

Part Symbol
-
Footprint
-

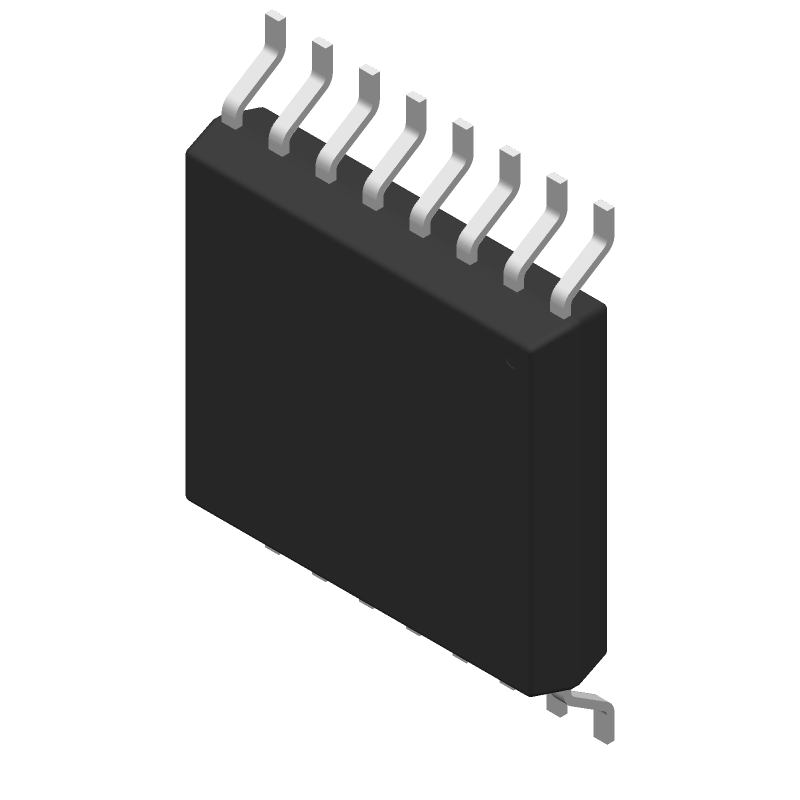

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AD7994BRUZ-0 Part Data Attributes
|
|
AD7994BRUZ-0
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD7994BRUZ-0
Analog Devices Inc
ADC, Successive Approximation, 12-Bit, 1 Func, 4 Channel, Serial Access, PDSO16
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TSSOP | |
| Package Description | Tssop, Tssop16,.25 | |
| Pin Count | 16 | |
| Manufacturer Package Code | RU-16 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog Input Voltage-Max | 5.5 V | |
| Analog Input Voltage-Min | ||
| Converter Type | Adc, Successive Approximation | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 5 Mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 4 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | Serial | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.188 Mhz | |
| Sample and Hold / Track and Hold | Track | |
| Seated Height-Max | 1.1 Mm | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 Mm |
Alternate Parts for AD7994BRUZ-0
This table gives cross-reference parts and alternative options found for AD7994BRUZ-0. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD7994BRUZ-0, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD7994BRUZ-0REEL | Analog Devices Inc | $6.5226 | ADC, Successive Approximation, 12-Bit, 1 Func, 4 Channel, Serial Access, PDSO16 | AD7994BRUZ-0 vs AD7994BRUZ-0REEL |
AD7994BRUZ-0 Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VDD first, followed by VREF, and then the analog input signals. This ensures proper operation and prevents damage to the device.
-
Check that the CONVST pin is being toggled correctly, and that the CS pin is low during the conversion process. Also, ensure that the VREF pin is within the recommended range and that the analog input signals are within the specified range.
-
The maximum frequency of the CONVST pin is 1 MHz. If the frequency exceeds 1 MHz, the AD7994BRUZ-0 may not function correctly, and the conversion results may be inaccurate or unreliable.
-
The mode of operation is determined by the state of the A0 and A1 pins. Ensure that these pins are tied to the correct logic levels to select the desired mode. Refer to the datasheet for the specific pin configurations for each mode.
-
The NOOP command is used to reset the internal state machine of the AD7994BRUZ-0. It can be used to abort a conversion in progress or to reset the device to a known state. To use the NOOP command, simply write the NOOP code (0x00) to the device.
