AD977ABRSZ
Description: 16-Bit, 200 kSPS, Serial I/O A/D Converter

Overview of AD977ABRSZ by Analog Devices Inc

Note: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Where used in Applications: Education and Research Internet of Things (IoT) Industrial Automation Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Electronic Manufacturing Automotive

Price & Stock for AD977ABRSZ by Analog Devices Inc

Part # Manufacturer Description Stock Price Buy
DISTI # AD977ABRSZ
Direct Components, Inc.   1
RFQ

CAD Models for AD977ABRSZ by Analog Devices Inc
You need to Sign In or Sign Up to download CAD models.

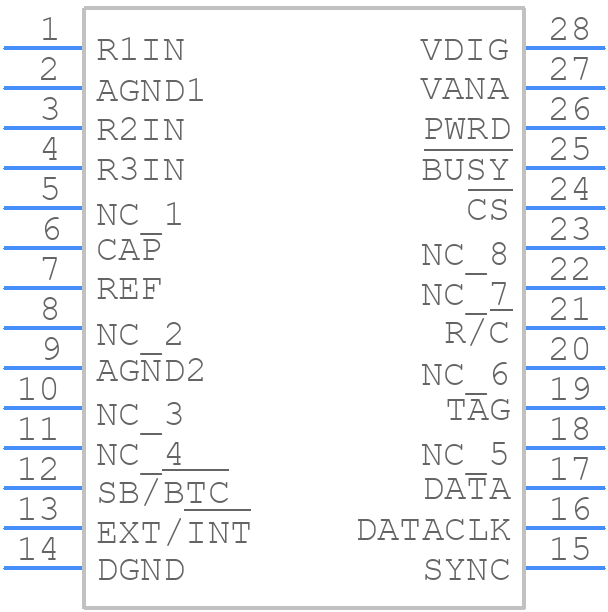

  • Part Symbol
    Part Symbol
  • Footprint
    footprint
  • 3D Model
    3D Model
25 Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

Part Data Attributes for AD977ABRSZ by Analog Devices Inc
Parametric Data

AD977ABRSZ
Analog Devices Inc
Buy Now
-
-
Pbfree Code
No
Rohs Code
Yes
Part Life Cycle Code
Obsolete
Ihs Manufacturer
ANALOG DEVICES INC
Part Package Code
SSOP
Package Description
SSOP,
Pin Count
28
Manufacturer Package Code
RS-28
Reach Compliance Code
compliant
ECCN Code
EAR99
HTS Code
8542.39.00.01
Samacsys Manufacturer
Analog Devices
Analog Input Voltage-Max
10 V
Analog Input Voltage-Min
-10 V
Conversion Time-Max
4 µs
Converter Type
ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code
R-PDSO-G28
JESD-609 Code
e3
Length
10.2 mm
Linearity Error-Max (EL)
0.0031%
Moisture Sensitivity Level
3
Number of Analog In Channels
3
Number of Bits
16
Number of Functions
1
Number of Terminals
28
Operating Temperature-Max
85 °C
Operating Temperature-Min
-40 °C
Output Bit Code
BINARY, 2'S COMPLEMENT BINARY
Output Format
SERIAL
Package Body Material
PLASTIC/EPOXY
Package Code
SSOP
Package Shape
RECTANGULAR
Package Style
SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel)
260
Qualification Status
Not Qualified
Sample Rate
0.2 MHz
Seated Height-Max
2 mm
Supply Voltage-Nom
5 V
Surface Mount
YES
Technology
BICMOS
Temperature Grade
INDUSTRIAL
Terminal Finish
Matte Tin (Sn) - annealed
Terminal Form
GULL WING
Terminal Pitch
0.65 mm
Terminal Position
DUAL
Time@Peak Reflow Temperature-Max (s)
40
Width
5.3 mm
Want to compare parts?
  1. AD977ABRSZ
    Analog Devices Inc
    16-Bit, 200 kSPS, Serial I/O A/D Converter
    VS

Alternate Parts for AD977ABRSZ
