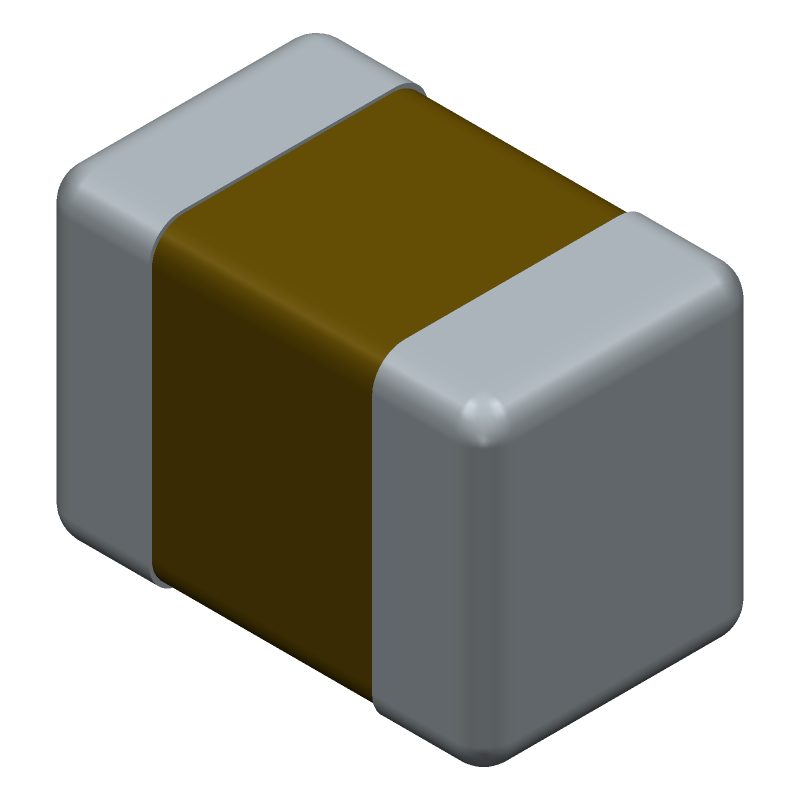

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CC0805KKX7R9BB105 by YAGEO Corporation
Results Overview of CC0805KKX7R9BB105 by YAGEO Corporation
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CC0805KKX7R9BB105 Information
CC0805KKX7R9BB105 by YAGEO Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for CC0805KKX7R9BB105
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
40AJ6503
|
Newark | Cap, 1Uf, 50V, Mlcc, 0805 Rohs Compliant: Yes |Yageo CC0805KKX7R9BB105 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 20327 |
|
$0.0430 | Buy Now |
|
DISTI #
65R8880
|
Newark | Capacitor, 1Uf, X7R, 50V, 0805, Capacitance:1Μf, Voltage(Dc):50V, Capacitor Case/Package:0805 [2012 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:Cc Series, Product Length:2.01Mm Rohs Compliant: Yes |Yageo CC0805KKX7R9BB105 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0240 / $0.0430 | Buy Now |
|
DISTI #
CC0805KKX7R9BB105
|
Avnet Americas | - Tape and Reel (Alt: CC0805KKX7R9BB105) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 135000 |
|
$0.0168 / $0.0186 | Buy Now |
|
|
Bristol Electronics | Min Qty: 48 | 225804 |
|
$0.0143 / $0.1057 | Buy Now |
|
DISTI #
CC0805KKX7R9BB105
|
TME | Capacitor: ceramic, MLCC, 1uF, 50V, X7R, ±10%, SMD, 0805 Min Qty: 1 | 14455 |
|
$0.0115 / $0.1628 | Buy Now |
|
|
ComSIT USA | AVAILABLE EU | 1261 |
|
RFQ | |
|
|
ComSIT USA | MULTILAYER CERAMIC CAPACITOR Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 0805 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 3377069 |
|
RFQ | |
|
DISTI #
CC0805KKX7R9BB105
|
Avnet Abacus | - Tape and Reel (Alt: CC0805KKX7R9BB105) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 17 Weeks, 0 Days Container: Reel | Abacus - 5559000 |
|
Buy Now | |
|
DISTI #
CC0805KKX7R9BB105
|
Chip One Stop | Cap Ceramic 1uF 50V X7R 10% Pad SMD 0805 125C T/R RoHS: Compliant pbFree: Yes Min Qty: 50 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 191107 |
|
$0.0127 / $0.0280 | Buy Now |
Part Details for CC0805KKX7R9BB105
CC0805KKX7R9BB105 CAD Models
CC0805KKX7R9BB105 Part Data Attributes
|
|
CC0805KKX7R9BB105
YAGEO Corporation
Buy Now
Datasheet
|
Compare Parts:
CC0805KKX7R9BB105
YAGEO Corporation
Capacitor, Ceramic, Chip, General Purpose, 1uF, 50V, ±10%, X7R, 0805 (2012 mm), 0.053"T, -55º ~ +125ºC, 7" Reel/Plastic Tape
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | YAGEO CORP | |
| Part Package Code | 0805 | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | YAGEO | |
| Capacitance | 1 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 1.25 mm | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | YES | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, EMBOSSED PLASTIC, 7 INCH | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X7R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Width | 1.25 mm |
Alternate Parts for CC0805KKX7R9BB105
This table gives cross-reference parts and alternative options found for CC0805KKX7R9BB105. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CC0805KKX7R9BB105, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MSASU21GSB7105KTNA01 | TAIYO YUDEN | $0.0623 | Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 0805, CHIP | CC0805KKX7R9BB105 vs MSASU21GSB7105KTNA01 |
| C0805X105K050RY | Holy Stone Enterprise Co Ltd | Check for Price | Ceramic Capacitor, Ceramic, | CC0805KKX7R9BB105 vs C0805X105K050RY |
| 0805F0500105KXT | Knowles Capacitors | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 0805, CHIP | CC0805KKX7R9BB105 vs 0805F0500105KXT |
| GCH21BR71H105KE01L | Murata Manufacturing Co Ltd | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 0805, CHIP | CC0805KKX7R9BB105 vs GCH21BR71H105KE01L |
| MMASU21GSB7105KTNA01 | TAIYO YUDEN | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 0805, CHIP | CC0805KKX7R9BB105 vs MMASU21GSB7105KTNA01 |
| 0805J0500105KXT | Knowles Capacitors | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 0805, CHIP | CC0805KKX7R9BB105 vs 0805J0500105KXT |
| MCASU21GSB7105KTNA1J | TAIYO YUDEN | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 0805, CHIP | CC0805KKX7R9BB105 vs MCASU21GSB7105KTNA1J |
| UMK212B7105KG | TAIYO YUDEN | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 1uF, 0805, | CC0805KKX7R9BB105 vs UMK212B7105KG |
| CM21X7R105K50AT | KYOCERA Corporation | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 1uF, 0805, | CC0805KKX7R9BB105 vs CM21X7R105K50AT |
| C0805X105K050BY | Holy Stone Enterprise Co Ltd | Check for Price | Ceramic Capacitor, Ceramic, | CC0805KKX7R9BB105 vs C0805X105K050BY |
CC0805KKX7R9BB105 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature profile for CC0805KKX7R9BB105 is 250°C for 1-2 seconds, with a peak temperature of 260°C for 3-5 seconds. However, it's recommended to consult the YAGEO application note for specific soldering guidelines.
-
Yes, CC0805KKX7R9BB105 is compatible with lead-free soldering. YAGEO Corporation ensures that their products comply with the RoHS directive and are suitable for lead-free soldering processes.
-
The MSL of CC0805KKX7R9BB105 is MSL 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking before reflow soldering.
-
Yes, CC0805KKX7R9BB105 is suitable for high-frequency applications up to 1 GHz. However, it's recommended to consult the YAGEO application note for specific guidance on high-frequency usage.
-
The operating temperature range of CC0805KKX7R9BB105 is -55°C to 125°C. However, the component's electrical characteristics may vary outside the recommended operating temperature range.
