LTC2400CS8#PBF Information
LTC2400CS8#PBF by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC2400CS8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4018784
|
Farnell | ADC, 24BIT, NSOIC-8, 0 TO 70DEG C RoHS: Compliant Min Qty: 1 Lead time: 12 Weeks, 1 Days Container: Each | 235 |
|
$10.6187 / $19.7377 | Buy Now |
|
DISTI #
505-LTC2400CS8#PBF-ND
|
DigiKey | IC ADC 24BIT SIGMA-DELTA 8SOIC Min Qty: 1 Lead time: 10 Weeks Container: Tube |
988 In Stock |
|
$10.8815 / $16.9400 | Buy Now |
|
DISTI #
584-LTC2400CS8#PBF
|
Mouser Electronics | Analog to Digital Converters - ADC 24-Bit Power No Latency ?? ADC in SO-8 RoHS: Compliant | 3601 |
|
$9.8300 / $17.7900 | Buy Now |
|
DISTI #
V36:1790_06450299
|
Arrow Electronics | 1-Channel Single ADC Delta-Sigma 7.5sps 24-bit Serial 8-Pin SOIC N Tube COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2538 | Americas - 65 |
|
$9.5200 / $17.5740 | Buy Now |
|
|
Analog Devices Inc | 24-B µPwr No Lat Delta-Sigma A Package Multiple: 100 | 298 |
|
$7.8700 / $17.7900 | Buy Now |
|
DISTI #
V36:1790_06450299
|
Arrow Electronics | 1-Channel Single ADC Delta-Sigma 7.5sps 24-bit Serial 8-Pin SOIC N Tube COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2538 | Americas - 65 |
|
$9.5200 / $17.5740 | Buy Now |
|
DISTI #
LTC2400CS8
|
TME | IC: A/D converter, Ch: 1, 24bit, 2.7÷5.5V, SO8 Min Qty: 1 | 0 |
|
$10.1000 / $13.9000 | RFQ |
|
DISTI #
V36:1790_06450299
|
Arrow Electronics | 1-Channel Single ADC Delta-Sigma 7.5sps 24-bit Serial 8-Pin SOIC N Tube COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2538 | Americas - 65 |
|
$9.5200 / $17.5740 | Buy Now |
|
DISTI #
LTC2400CS8#PBF
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 100 | 0 |
|
$10.1600 / $11.1500 | Buy Now |
|
|
Win Source Electronics | IC ADC 24BIT SIGMA-DELTA 8SOIC | 2270 |
|
$14.2657 / $18.4265 | Buy Now |
US Tariff Estimator: LTC2400CS8#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC2400CS8#PBF
LTC2400CS8#PBF CAD Models
-

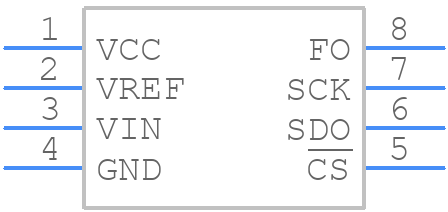

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC2400CS8#PBF Part Data Attributes
|
|
LTC2400CS8#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC2400CS8#PBF
Analog Devices Inc
ADC, Delta-Sigma, 24-Bit, 1 Func, 1 Channel, Serial Access, CMOS, PDSO8
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Sop, Sop8,.25 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1610 (S8) | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog Input Voltage-Max | 6.1875 V | |
| Analog Input Voltage-Min | -0.0125 V | |
| Conversion Time-Max | 163200 µS | |
| Converter Type | Adc, Delta-Sigma | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 24 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Bit Code | BINARY | |
| Output Format | Serial | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm |
Alternate Parts for LTC2400CS8#PBF
This table gives cross-reference parts and alternative options found for LTC2400CS8#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC2400CS8#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC2400IS8#PBF | Analog Devices Inc | $15.1852 | ADC, Delta-Sigma, 24-Bit, 1 Func, 1 Channel, Serial Access, CMOS, PDSO8 | LTC2400CS8#PBF vs LTC2400IS8#PBF |
| LTC2400CS8#TRPBF | Analog Devices Inc | $8.6505 | ADC, Delta-Sigma, 24-Bit, 1 Func, 1 Channel, Serial Access, CMOS, PDSO8 | LTC2400CS8#PBF vs LTC2400CS8#TRPBF |
| LTC2400IS8#TRPBF | Analog Devices Inc | Check for Price | ADC, Delta-Sigma, 24-Bit, 1 Func, 1 Channel, Serial Access, CMOS, PDSO8 | LTC2400CS8#PBF vs LTC2400IS8#TRPBF |
LTC2400CS8#PBF Frequently Asked Questions (FAQ)
-
The recommended layout and placement for the LTC2400CS8 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources to minimize noise. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
To optimize the performance of the LTC2400CS8 in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter or a ferrite bead to reduce electromagnetic interference (EMI).
-
The maximum clock frequency that can be used with the LTC2400CS8 is 4.096 MHz. However, the device can also be operated at lower clock frequencies, such as 1.024 MHz or 2.048 MHz, depending on the specific application requirements.
-
To ensure accurate conversions with the LTC2400CS8, use a high-quality voltage reference, ensure proper PCB layout and grounding, and consider using a calibration routine to compensate for any offset or gain errors.
-
Yes, the LTC2400CS8 can be used in multiplexed applications. The device has a fast conversion time, making it suitable for multiplexed applications. However, the multiplexer should be designed to minimize settling time and ensure that the input signal is stable before conversion.
