Part Details for MAX5500BGAP+ by Analog Devices Inc
Results Overview of MAX5500BGAP+ by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Financial Technology (Fintech)
Energy and Power Systems
Renewable Energy
Automotive
MAX5500BGAP+ Information
MAX5500BGAP+ by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for MAX5500BGAP+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX5500BGAP
|
Mouser Electronics | Digital to Analog Converters - DAC Low-Power, Quad, 12-Bit Voltage-Output D RoHS: Compliant | 210 |
|
$6.4300 / $11.1100 | Buy Now |
|
|
Analog Devices Inc | Low-Power, Quad, 12-Bit Voltag Package Multiple: 1 | 20 |
|
$4.7100 / $10.6100 | Buy Now |
|
|
Quest Components | 264 |
|
$14.9584 / $21.0353 | Buy Now | |
|
|
Vyrian | Peripheral ICs | 2969 |
|
RFQ |
US Tariff Estimator: MAX5500BGAP+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MAX5500BGAP+
MAX5500BGAP+ CAD Models
-

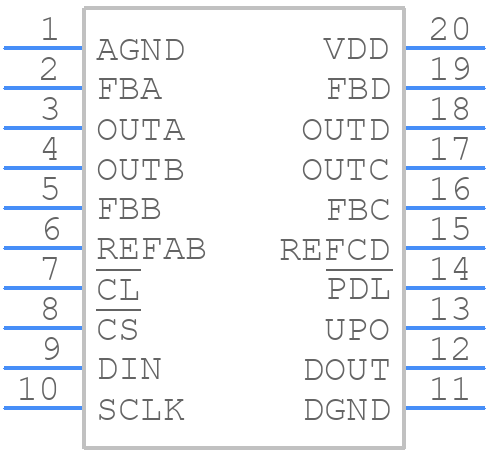

Part Symbol
-

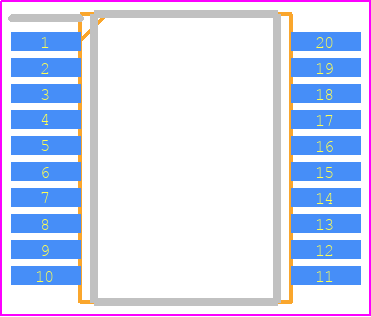

Footprint
-

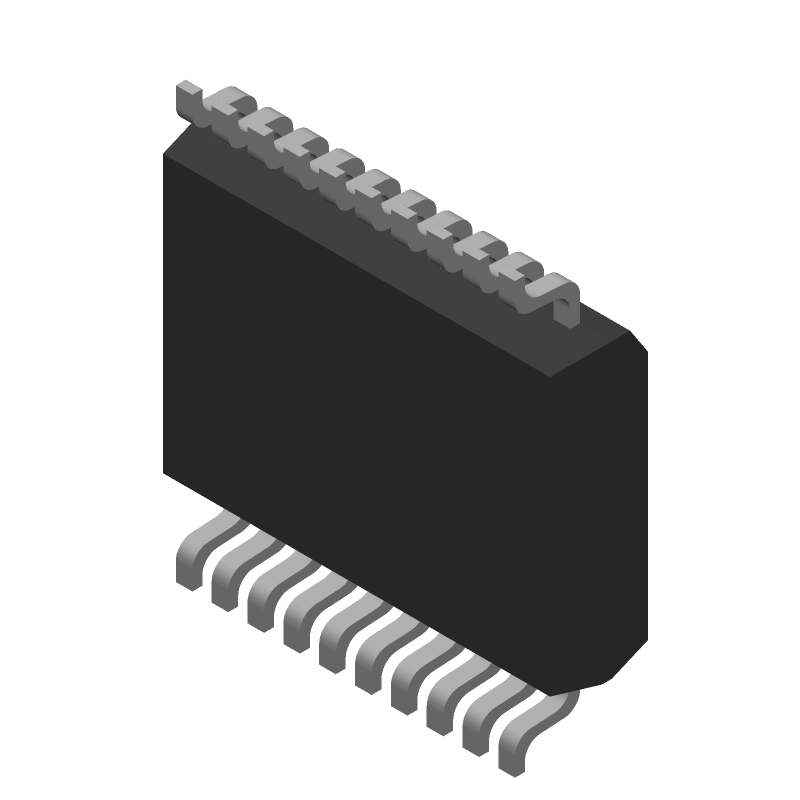

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MAX5500BGAP+ Part Data Attributes
|
|
MAX5500BGAP+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX5500BGAP+
Analog Devices Inc
D/A Converter, 1 Func, Serial Input Loading, 12us Settling Time, PDSO20
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 20-SSOP-5.3_MM | |
| Package Description | Ssop, Ssop20,.3 | |
| Pin Count | 20 | |
| Manufacturer Package Code | 20-SSOP-5.3_MM | |
| Reach Compliance Code | Compliant | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2008-11-13 | |
| Analog Output Voltage-Max | 5.5 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A Converter | |
| Input Bit Code | BINARY, OFFSET BINARY | |
| Input Format | Serial | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 7.2 Mm | |
| Linearity Error-Max (EL) | 0.0488% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP20,.3 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.99 Mm | |
| Settling Time-Nom (tstl) | 12 µS | |
| Supply Current-Max | 1.1 Ma | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Technology | Bicmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.29 Mm |
MAX5500BGAP+ Frequently Asked Questions (FAQ)
-
The recommended layout and placement for the MAX5500BGAP+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Refer to the application note AN-1149 for more details.
-
To ensure proper power-up and initialization, make sure to follow the power-up sequence specified in the datasheet. Apply VCC first, followed by VLOGIC, and then the input signals. Also, ensure that the input signals are stable and within the recommended voltage range before applying VCC.
-
The MAX5500BGAP+ has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at higher temperatures, and it's recommended to operate it within a temperature range of -20°C to +85°C for optimal performance.
-
To troubleshoot issues with the MAX5500BGAP+, start by verifying the power supply and input signals. Check for proper power-up sequencing, voltage levels, and signal integrity. Use an oscilloscope to monitor the output signals and look for any signs of oscillation or instability. Refer to the datasheet and application notes for more troubleshooting tips.
-
Yes, the MAX5500BGAP+ is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive applications. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific application requirements.
