SM15T68CAY Information
SM15T68CAY by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SM15T68CAY
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
97W2806
|
Newark | Tvs Diode, Bidir, 121V, Do-214Ab, Product Range:Transil Sm15Ty Series, Tvs Polarity:Bidirectional, Reverse Standoff Voltage:58.1V, Clamping Voltage Max:121V, Diode Case Style:Do-214Ab (Smc), No. Of Pins:2Pins, Qualification:Aec-Q101 Rohs Compliant: Yes |Stmicroelectronics SM15T68CAY RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 10867 |
|
$0.3940 / $1.0800 | Buy Now |
|
DISTI #
497-10907-1-ND
|
DigiKey | TVS DIODE 58.1VWM 121VC SMC Min Qty: 1 Lead time: 21 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2245 In Stock |
|
$0.3977 / $1.0500 | Buy Now |
|
DISTI #
SM15T68CAY
|
Avnet Americas | ESD Suppressor TVS 30KV 2-Pin SMC T/R - Tape and Reel (Alt: SM15T68CAY) COO: France RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 53 Weeks, 1 Days Container: Tape & Reel | 0 |
|
$0.3914 / $0.4300 | Buy Now |
|
DISTI #
511-SM15T68CAY
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 1500 W 10kW Transil 5.8V tp 70V BI RoHS: Compliant | 3903 |
|
$0.3970 / $1.0500 | Buy Now |
|
DISTI #
V36:1790_06556274
|
Arrow Electronics | TVS Diode Single Bi-Dir 58.1V 1.5KW Automotive AEC-Q101 2-Pin SMC T/R COO: China RoHS: Exempt Min Qty: 2500 Package Multiple: 2500 Lead time: 21 Weeks Date Code: 2511 | Americas - 5000 |
|
$0.3820 / $0.4290 | Buy Now |
|
|
STMicroelectronics | Automotive 1500 W, 58.1 V TVS in SMC COO: France RoHS: Compliant Min Qty: 1 | 3903 |
|
$0.5200 / $1.0300 | Buy Now |
|
DISTI #
89520097
|
Verical | TVS Diode Single Bi-Dir 58.1V 1.5KW Automotive AEC-Q101 2-Pin SMC T/R RoHS: Exempt Min Qty: 2500 Package Multiple: 2500 Date Code: 2511 | Americas - 5000 |
|
$0.3820 / $0.4290 | Buy Now |
|
DISTI #
V36:1790_06556274
|
Arrow Electronics | TVS Diode Single Bi-Dir 58.1V 1.5KW Automotive AEC-Q101 2-Pin SMC T/R COO: China RoHS: Exempt Min Qty: 2500 Package Multiple: 2500 Lead time: 21 Weeks Date Code: 2511 | Americas - 5000 |
|
$0.3820 / $0.4290 | Buy Now |
|
DISTI #
89520097
|
Verical | TVS Diode Single Bi-Dir 58.1V 1.5KW Automotive AEC-Q101 2-Pin SMC T/R COO: China RoHS: Exempt Min Qty: 2500 Package Multiple: 2500 Date Code: 2511 | Americas - 5000 |
|
$0.3820 / $0.4290 | Buy Now |
|
DISTI #
V36:1790_06556274
|
Arrow Electronics | TVS Diode Single Bi-Dir 58.1V 1.5KW Automotive AEC-Q101 2-Pin SMC T/R COO: China RoHS: Exempt Min Qty: 2500 Package Multiple: 2500 Lead time: 21 Weeks Date Code: 2511 | Americas - 5000 |
|
$0.3820 / $0.4290 | Buy Now |
US Tariff Estimator: SM15T68CAY by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SM15T68CAY

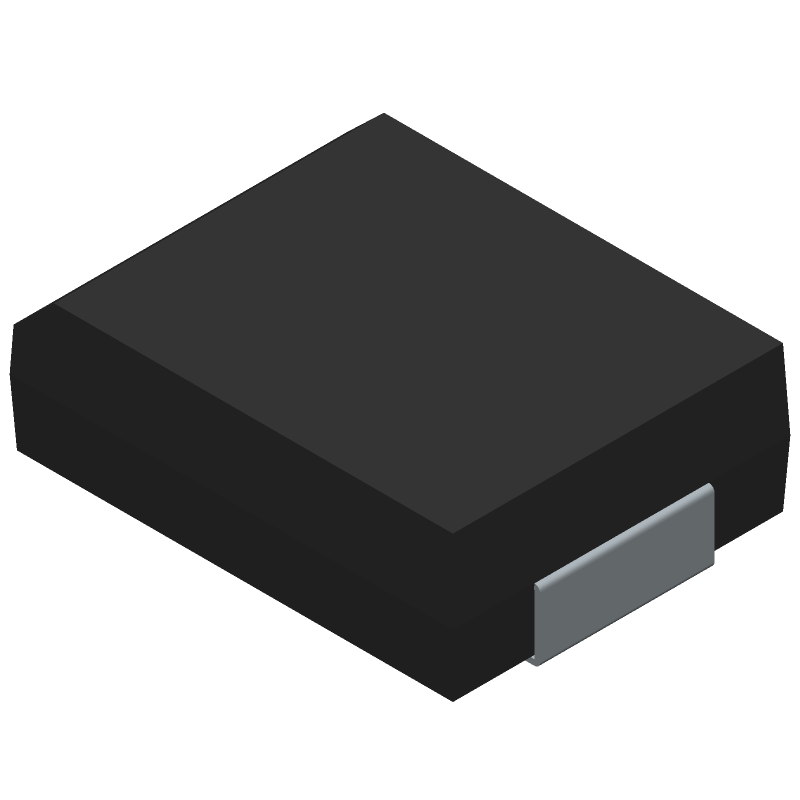

SM15T68CAY CAD Models
-
Part Symbol
-

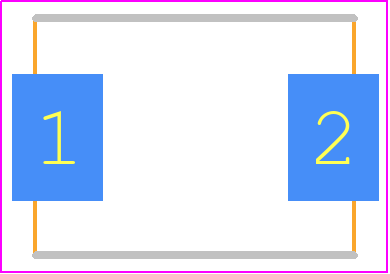

Footprint
-
