SMLJ40CA-TP Information
SMLJ40CA-TP by Micro Commercial Components is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMLJ40CA-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SMLJ40CA-TPMSCT-ND
|
DigiKey | TVS DIODE 40VWM 64.5VC DO214AB Min Qty: 1 Lead time: 20 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
7371 In Stock |
|
$0.3500 / $0.5200 | Buy Now |
|
DISTI #
833-SMLJ40CA-TP
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes BI-DIR 3000W 64.5V RoHS: Compliant | 1786 |
|
$0.4710 / $0.5200 | Buy Now |
|
DISTI #
V72:2272_06844089
|
Arrow Electronics | Diode TVS Single Bi-Dir 40V 3KW 2-Pin SMC T/R COO: China RoHS: Exempt Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2146 Container: Cut Strips | Americas - 1783 |
|
$0.3591 / $0.3713 | Buy Now |
|
|
Future Electronics | SMLJ Series 3 kW 40 V Bi-Directional Surface Mount TVS Diode - DO-214AB RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks Container: Reel | 0Reel |
|
$0.4750 / $0.4850 | Buy Now |
|
DISTI #
61254723
|
Verical | Diode TVS Single Bi-Dir 40V 3KW 2-Pin SMC T/R RoHS: Exempt Min Qty: 17 Package Multiple: 1 Date Code: 2146 | Americas - 1783 |
|
$0.3713 | Buy Now |
|
DISTI #
V72:2272_06844089
|
Arrow Electronics | Diode TVS Single Bi-Dir 40V 3KW 2-Pin SMC T/R COO: China RoHS: Exempt Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2146 Container: Cut Strips | Americas - 1783 |
|
$0.3591 / $0.3713 | Buy Now |
|
DISTI #
61254723
|
Verical | Diode TVS Single Bi-Dir 40V 3KW 2-Pin SMC T/R COO: China RoHS: Exempt Min Qty: 17 Package Multiple: 1 Date Code: 2146 | Americas - 1783 |
|
$0.3713 | Buy Now |
|
DISTI #
SMLJ40CA-TP
|
TME | Diode: TVS, 3kW, 44.4÷49.1V, 46.4A, bidirectional, ±5%, DO214AB,SMC Min Qty: 1 | 0 |
|
$0.6700 / $1.0800 | RFQ |
|
DISTI #
V72:2272_06844089
|
Arrow Electronics | Diode TVS Single Bi-Dir 40V 3KW 2-Pin SMC T/R COO: China RoHS: Exempt Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2146 Container: Cut Strips | Americas - 1783 |
|
$0.3591 / $0.3713 | Buy Now |
|
DISTI #
SMLJ40CA-TP
|
IBS Electronics | SMLJ40CA-TP by MCC is a 3 kW 40 V bi-directional surface mount TVS diode in a DO-214AB package, designed for voltage surge protection in electronic circuits. Min Qty: 1 Package Multiple: 1 | 0 |
|
$0.6650 / $0.6790 | Buy Now |
US Tariff Estimator: SMLJ40CA-TP by Micro Commercial Components
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SMLJ40CA-TP
SMLJ40CA-TP CAD Models
-
Part Symbol
-

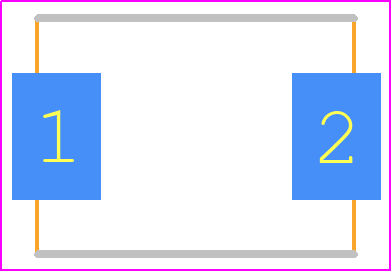

Footprint
-

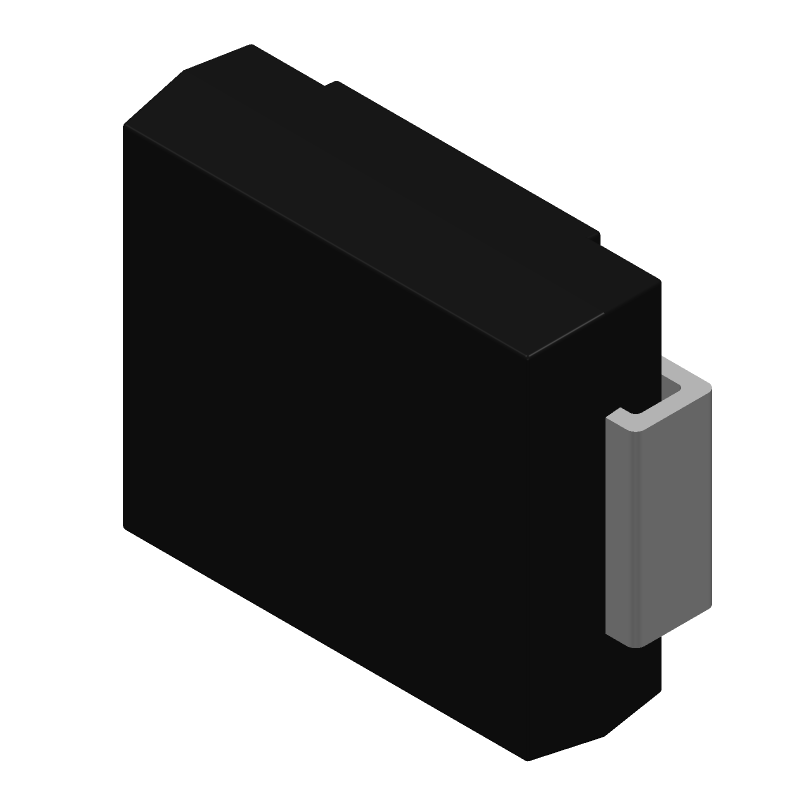

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SMLJ40CA-TP Part Data Attributes
|
|
SMLJ40CA-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
SMLJ40CA-TP
Micro Commercial Components
Trans Voltage Suppressor Diode, 3000W, 40V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | DO-214AB | |
| Package Description | 2 Pin | |
| Pin Count | 2 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Additional Feature | Excellent Clamping Capability, Pd-Min | |
| Breakdown Voltage-Max | 49.1 V | |
| Breakdown Voltage-Min | 44.4 V | |
| Breakdown Voltage-Nom | 46.75 V | |
| Clamping Voltage-Max | 64.5 V | |
| Configuration | Single | |
| Diode Element Material | Silicon | |
| Diode Type | Trans Voltage Suppressor Diode | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 3000 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | Bidirectional | |
| Qualification Status | Not Qualified | |
| Reference Standard | Ul Recognized | |
| Rep Pk Reverse Voltage-Max | 40 V | |
| Surface Mount | Yes | |
| Technology | Avalanche | |
| Terminal Finish | Matte Tin | |
| Terminal Form | C Bend | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for SMLJ40CA-TP
This table gives cross-reference parts and alternative options found for SMLJ40CA-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMLJ40CA-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SMDJ40CA/TR7 | YAGEO Corporation | Check for Price | Trans Voltage Suppressor Diode, 3000W, 40V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB | SMLJ40CA-TP vs SMDJ40CA/TR7 |
SMLJ40CA-TP Frequently Asked Questions (FAQ)
-
The recommended land pattern for the SMLJ40CA-TP is a rectangular pad with a size of 2.5mm x 1.5mm, with a 0.5mm radius corner and a 0.3mm spacing between pads.
-
Handle the SMLJ40CA-TP by the body, avoid touching the leads or the glass passivation, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
-
The maximum allowable voltage derating for the SMLJ40CA-TP is 10% of the rated voltage, but it's recommended to derate by 5% to ensure reliable operation.
-
The SMLJ40CA-TP is rated for operation up to 150°C, but it's recommended to derate the voltage and current ratings by 10% for every 10°C above 125°C to ensure reliable operation.
-
Store the SMLJ40CA-TP in a dry, cool place, away from direct sunlight and moisture. Use a moisture barrier bag or a desiccant to maintain a relative humidity below 60%.
