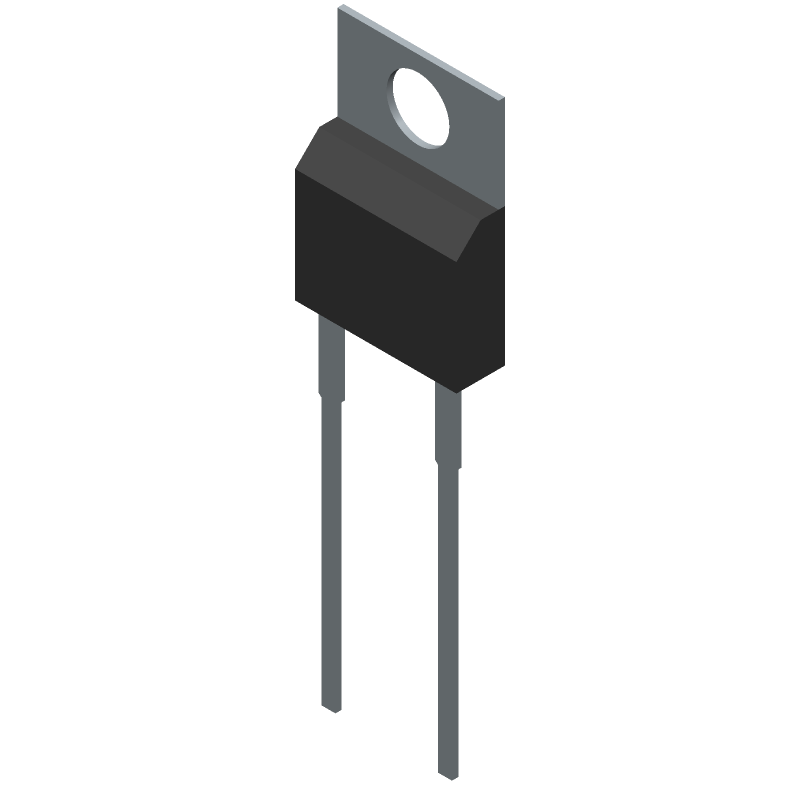

STTH1512PI Information
STTH1512PI by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
US Tariff Estimator: STTH1512PI by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Free Wheeling Diode, Low Leakage Current, Snubber Diode, High Reliability
Application
Ultra Fast Soft Recovery
Case Connection
Isolated
Configuration
Single
Diode Element Material
Silicon
Diode Type
Rectifier Diode
Forward Voltage-Max (VF)
1.8 V
JESD-30 Code
R-PSFM-T2
JESD-609 Code
e3
Non-rep Pk Forward Current-Max
200 A
Number of Elements
1
Number of Phases
1
Number of Terminals
2
Operating Temperature-Max
175 °C
Output Current-Max
15 A
Package Body Material
Plastic/Epoxy
Package Shape
Rectangular
Package Style
Flange Mount
Qualification Status
Not Qualified
Rep Pk Reverse Voltage-Max
1200 V
Reverse Recovery Time-Max
0.105 µS
Surface Mount
No
Terminal Finish
Matte Tin (Sn) - Annealed
Terminal Form
Through-Hole
Terminal Position
Single
