| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 1N5821-BP | Micro Commercial Components | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-201AD | 1N5821 vs 1N5821-BP |
| 1N5821/74 | Vishay Semiconductors | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-201AD | 1N5821 vs 1N5821/74 |
| 1N5821 | Central Semiconductor Corp | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-201AD | 1N5821 vs 1N5821 |
| 1N5821-E3/65 | Vishay Intertechnologies | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-201AD | 1N5821 vs 1N5821-E3/65 |
| 1N5821-E3 | Vishay Intertechnologies | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-201AD | 1N5821 vs 1N5821-E3 |
| 1N5821-G | Comchip Technology Corporation Ltd | Check for Price | Rectifier Diode, Schottky, 1 Element, 3A, 30V V(RRM), | 1N5821 vs 1N5821-G |
| 1N5821 | Won-Top Electronics Co Ltd | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-201AD | 1N5821 vs 1N5821 |
| 1N5821 | Tak Cheong Electronics (Holdings) Co Ltd | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-201AD | 1N5821 vs 1N5821 |
| 1N5821T&A | Continental Device India Ltd | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-201AD | 1N5821 vs 1N5821T&A |
| 1N5821 | Promax-Johnton Electronic Corporation | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-201AD | 1N5821 vs 1N5821 |
Part Details for 1N5821 by STMicroelectronics
Results Overview of 1N5821 by STMicroelectronics
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (10 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
1N5821 Information
1N5821 by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1N5821
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1N5821ST-ND
|
DigiKey | DIODE SCHOTTKY 30V 3A DO201AD Container: Ammo Pack |
0 Tape & Box |
|
Buy Now | |
|
|
Quest Components | 3 A, 30 V, SILICON, RECTIFIER DIODE, DO-201AD | 72 |
|
$0.2800 / $0.3500 | Buy Now |
US Tariff Estimator: 1N5821 by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
1N5821 CAD Models
-
Part Symbol
-
Footprint
-

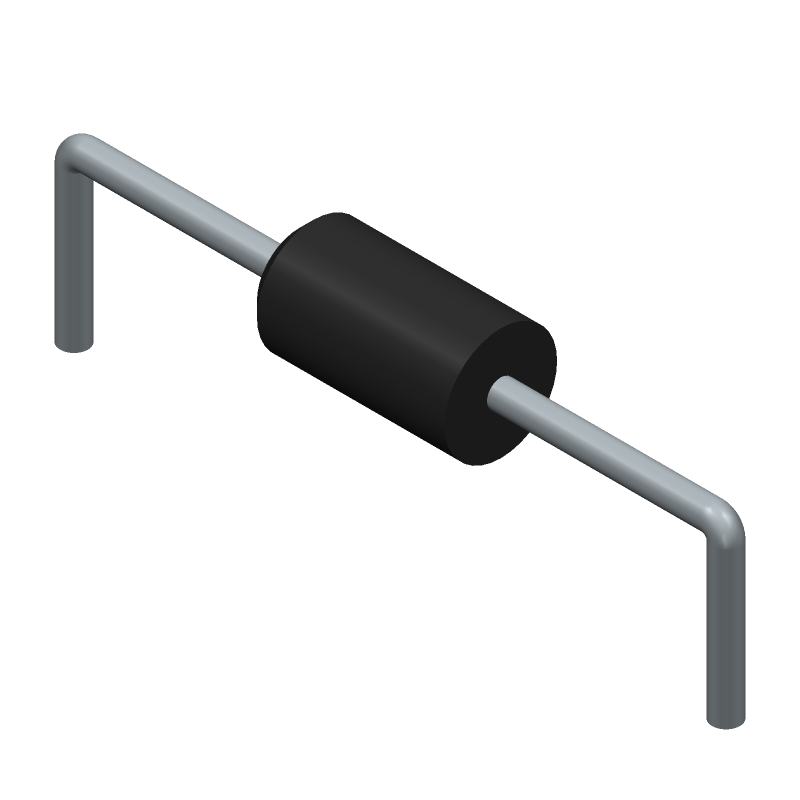

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
1N5821 Part Data Attributes
|
|
1N5821
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
1N5821
STMicroelectronics
Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-201AD
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | DO-201AD | |
| Package Description | Plastic Package-2 | |
| Pin Count | 2 | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Additional Feature | Free Wheeling Diode | |
| Application | Power | |
| Case Connection | Isolated | |
| Configuration | Single | |
| Diode Element Material | Silicon | |
| Diode Type | Rectifier Diode | |
| Forward Voltage-Max (VF) | 0.9 V | |
| JEDEC-95 Code | DO-201AD | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 80 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Output Current-Max | 3 A | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Round | |
| Package Style | Long Form | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 30 V | |
| Surface Mount | No | |
| Technology | Schottky | |
| Terminal Finish | Matte Tin | |
| Terminal Form | Wire | |
| Terminal Position | Axial |
Alternate Parts for 1N5821
This table gives cross-reference parts and alternative options found for 1N5821. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N5821, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
1N5821 Frequently Asked Questions (FAQ)
-
The maximum surge current rating of the 1N5821 is 150A for a single pulse of 10ms duration, as per the STMicroelectronics datasheet.
-
No, the 1N5821 is not suitable for switching applications due to its high reverse recovery time (trr) of 3μs, which can cause significant switching losses. It is recommended for rectification and freewheeling applications only.
-
The thermal resistance (Rth) of the 1N5821 is 15°C/W for the DO-201AD package, which means that for every watt of power dissipated, the junction temperature will rise by 15°C above the ambient temperature.
-
No, the 1N5821 is not suitable for high-frequency applications due to its high capacitance (CD) of 150pF, which can cause significant high-frequency losses and ringing.
-
Yes, you can use multiple 1N5821 diodes in parallel to increase the current rating, but ensure that each diode has its own separate heat sink and that the current sharing is balanced to avoid overheating and premature failure.
