LSR05 Information
LSR05 by Micro Commercial Components is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
US Tariff Estimator: LSR05 by Micro Commercial Components
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
LSR05 CAD Models
-

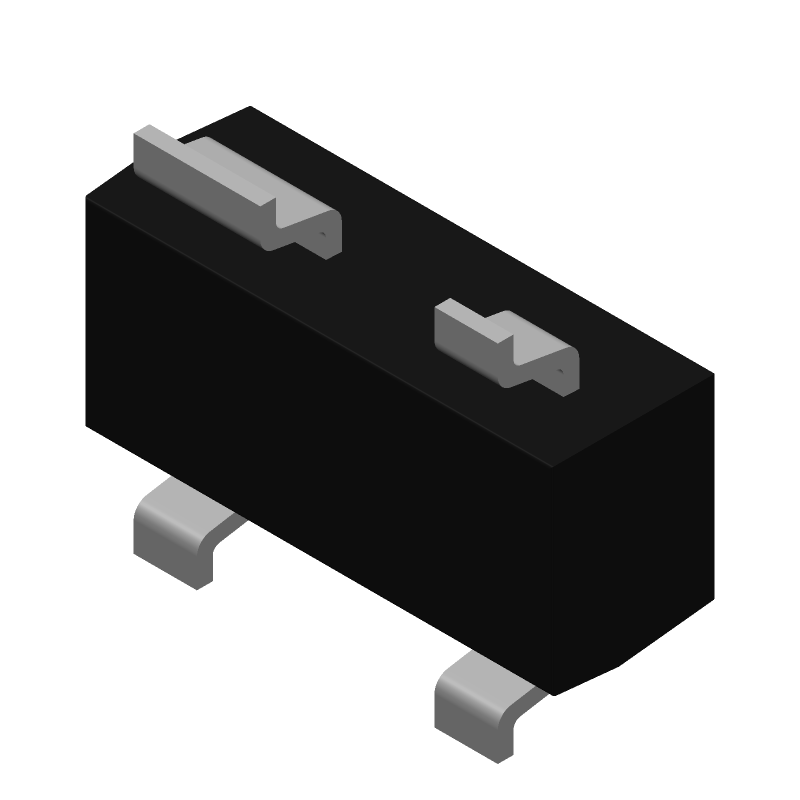

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LSR05 Part Data Attributes
|
|
LSR05
Micro Commercial Components
Buy Now
|
Compare Parts:
LSR05
Micro Commercial Components
Trans Voltage Suppressor Diode, 5V V(RWM)
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Clamping Voltage-Max | 12 V | |
| Diode Type | Trans Voltage Suppressor Diode | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Rep Pk Reverse Voltage-Max | 5 V | |
| Terminal Finish | Tin (Sn) | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
