MAX1003CAX+ Information
MAX1003CAX+ by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for MAX1003CAX+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX1003CAX
|
Mouser Electronics | Analog to Digital Converters - ADC Low-Power, 90Msps, Dual 6-Bit ADC RoHS: Compliant | 63 |
|
$8.8400 / $13.9700 | Buy Now |
|
|
Analog Devices Inc | Low-Power, 90Msps, Dual 6-Bit Package Multiple: 1 | 2232 |
|
$6.3700 / $13.9700 | Buy Now |
US Tariff Estimator: MAX1003CAX+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MAX1003CAX+
MAX1003CAX+ CAD Models
-
Part Symbol
-

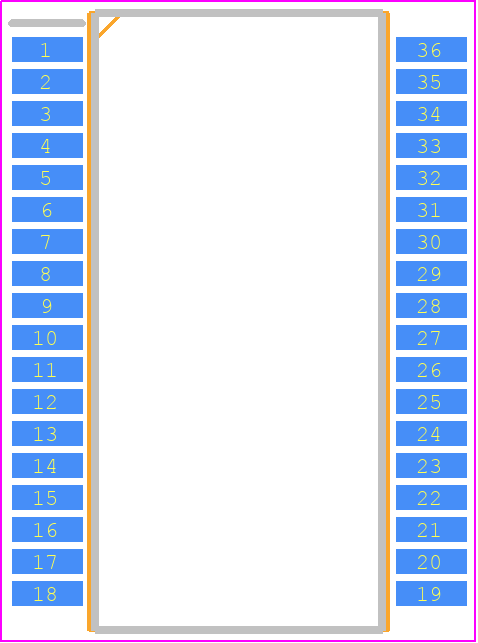

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MAX1003CAX+ Part Data Attributes
|
|
MAX1003CAX+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX1003CAX+
Analog Devices Inc
Low-Power, 90Msps, Dual 6-Bit ADC, 36-SSOP_W-7.62_MM, 36 Pins, 0 to 70C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 36-SSOP_W-7.62_MM | |
| Package Description | Ssop, Sop36,.4,32 | |
| Pin Count | 36 | |
| Manufacturer Package Code | 36-SSOP_W-7.62_MM | |
| Reach Compliance Code | Compliant | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 1997-06-01 | |
| Analog Input Voltage-Max | 2.75 V | |
| Analog Input Voltage-Min | 1.75 V | |
| Converter Type | Adc, Flash Method | |
| JESD-30 Code | R-PDSO-G36 | |
| JESD-609 Code | e3 | |
| Length | 15.415 Mm | |
| Linearity Error-Max (EL) | 0.7812% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 6 | |
| Number of Functions | 2 | |
| Number of Terminals | 36 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Bit Code | OFFSET BINARY | |
| Output Format | Parallel, Word | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SSOP | |
| Package Equivalence Code | SOP36,.4,32 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 90 Mhz | |
| Seated Height-Max | 2.64 Mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.8 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.495 Mm |
