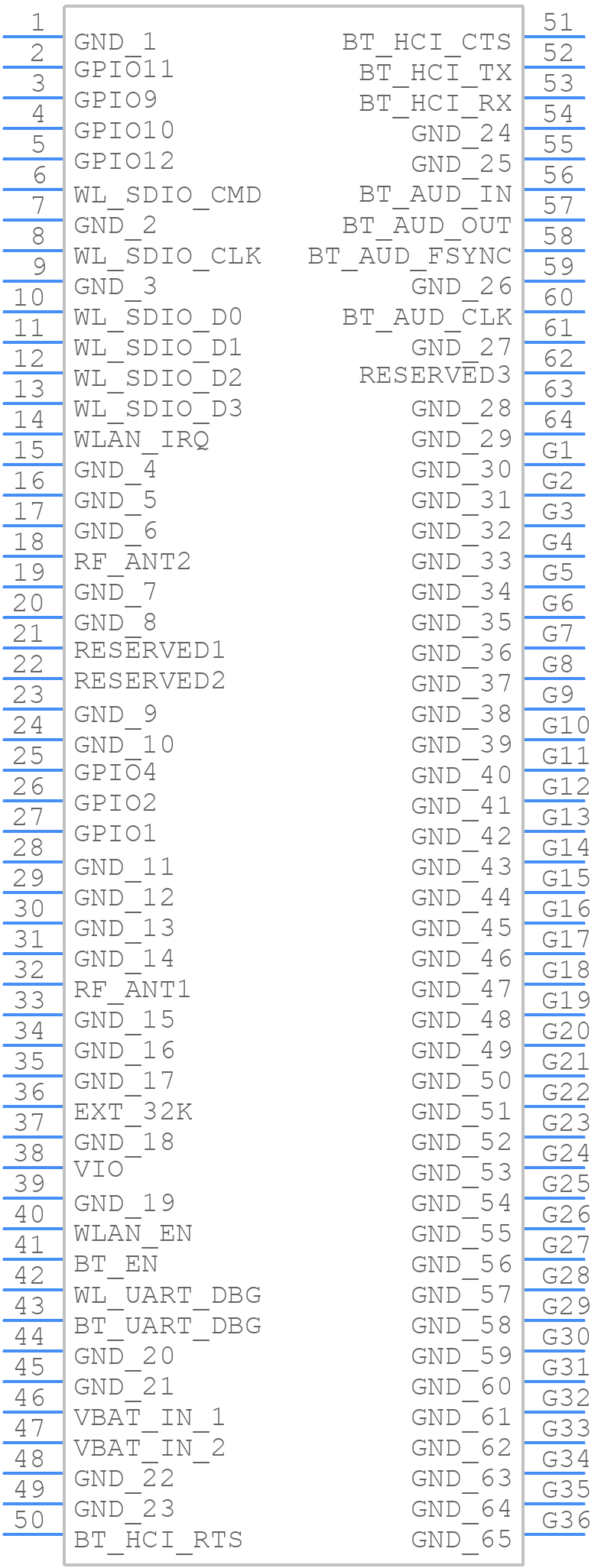

Part Symbol
-

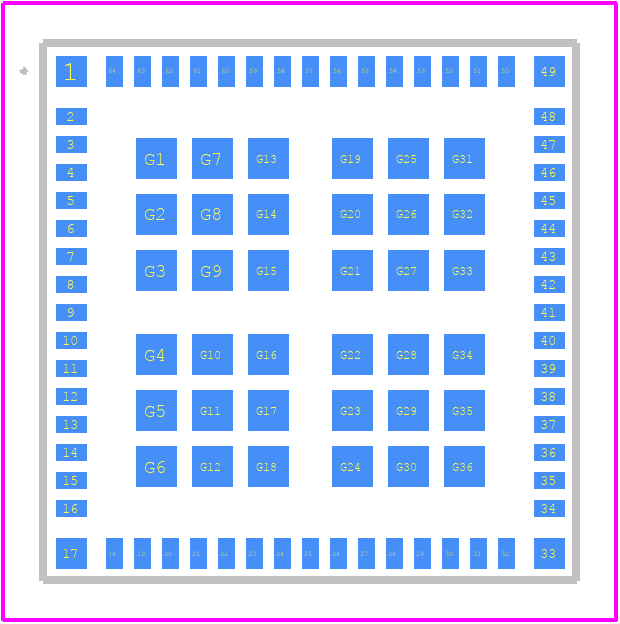

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for WL1801MODGBMOCT by Texas Instruments
Results Overview of WL1801MODGBMOCT by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
Automotive
WL1801MODGBMOCT Information
WL1801MODGBMOCT by Texas Instruments is an Other Telecom IC.
Other Telecom ICs are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for WL1801MODGBMOCT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
ComSIT USA | WILINK 8 SINGLE-BAND COMBO MODULE-WI-FI, BLUETOOTH, AND BLUETOOTH LOW ENERGY (BLE) Telecom Circuit, 1-Func, PBGA100 ECCN: 5A992.C RoHS: Compliant |
|
|
RFQ | |
|
|
Vyrian | Telecommunications | 1057 |
|
RFQ | |
|
|
Win Source Electronics | RF TXRX MODULE WIFI CHIP ANT / WL18xxMOD WiLink 8 Single-Band Combo Module Wi-Fi, Bluetooth, and Bluetooth Low Energy (LE) | 3350 |
|
$9.6250 / $12.4322 | Buy Now |
Part Details for WL1801MODGBMOCT
WL1801MODGBMOCT CAD Models
WL1801MODGBMOCT Part Data Attributes
|
|
WL1801MODGBMOCT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
WL1801MODGBMOCT
Texas Instruments
WiLink™ 8 single band Wi-Fi® module 100-QFM -20 to 70
|
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | MOC-100 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A992.C | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Data Rate | 100000 Mbps | |
| JESD-30 Code | R-PBGA-B100 | |
| JESD-609 Code | e4 | |
| Length | 13.4 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 100 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LGA | |
| Package Equivalence Code | LGA100(UNSPEC) | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2 mm | |
| Supply Voltage-Nom | 3.7 V | |
| Surface Mount | YES | |
| Telecom IC Type | TELECOM CIRCUIT | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | BUTT | |
| Terminal Pitch | 0.7 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 13.3 mm |
Alternate Parts for WL1801MODGBMOCT
This table gives cross-reference parts and alternative options found for WL1801MODGBMOCT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of WL1801MODGBMOCT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BM83SM1-00AA | Microchip Technology Inc | $13.3243 | Telecom IC | WL1801MODGBMOCT vs BM83SM1-00AA |
| WL1835MODGBMOCR | Texas Instruments | $13.5001 | WiLink™ 8 single band combo 2x2 MIMO Wi-Fi®, Bluetooth® & Bluetooth Smart module 100-QFM -20 to 70 | WL1801MODGBMOCT vs WL1835MODGBMOCR |
| WL1831MODGBMOCT | Texas Instruments | $13.7839 | WiLink™ 8 industrial Wi-Fi, Bluetooth & Bluetooth Smart (Low energy) module 100-QFM -20 to 70 | WL1801MODGBMOCT vs WL1831MODGBMOCT |
| WL1835MODGBMOCT | Texas Instruments | $14.4270 | WiLink™ 8 single band combo 2x2 MIMO Wi-Fi®, Bluetooth® & Bluetooth Smart module 100-QFM -20 to 70 | WL1801MODGBMOCT vs WL1835MODGBMOCT |
| XWL1801MODGAMOCR | Texas Instruments | Check for Price | IC SPECIALTY TELECOM CIRCUIT, Telecom IC:Other | WL1801MODGBMOCT vs XWL1801MODGAMOCR |
| WL1801MODGBMOCR | Texas Instruments | Check for Price | WiLink™ 8 single band Wi-Fi® module 100-QFM -20 to 70 | WL1801MODGBMOCT vs WL1801MODGBMOCR |
| XWL1805MODGAMOCR | Texas Instruments | Check for Price | IC SPECIALTY TELECOM CIRCUIT, Telecom IC:Other | WL1801MODGBMOCT vs XWL1805MODGAMOCR |
| XWL1831MODGAMOCR | Texas Instruments | Check for Price | IC SPECIALTY TELECOM CIRCUIT, Telecom IC:Other | WL1801MODGBMOCT vs XWL1831MODGAMOCR |
| XWL1805MODGAMOCT | Texas Instruments | Check for Price | Texas Instruments XWL1805MODGAMOCT | WL1801MODGBMOCT vs XWL1805MODGAMOCT |
| WL1805MODGBMOCR | Texas Instruments | Check for Price | WiLink™ 8 single band, 2x2 MIMO Wi-Fi® module 100-QFM -20 to 70 | WL1801MODGBMOCT vs WL1805MODGBMOCR |
WL1801MODGBMOCT Frequently Asked Questions (FAQ)
-
Texas Instruments provides a recommended PCB layout guide in the WL1801MODGBMOCT datasheet, which includes guidelines for component placement, routing, and grounding to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The WL1801MODGBMOCT has a built-in coexistence mechanism that allows Wi-Fi and Bluetooth to operate simultaneously. To configure coexistence, refer to the TI's WiLink 8 Wi-Fi + Bluetooth Coexistence Application Note (SWRA477) for detailed guidelines and register settings.
-
The WL1801MODGBMOCT is rated for operation from -40°C to 85°C, but it's recommended to operate within the industrial temperature range of -20°C to 70°C for optimal performance and reliability.
-
The WL1801MODGBMOCT supports antenna diversity, which can improve Wi-Fi performance. To implement antenna diversity, use two antennas and connect them to the module's antenna ports. Configure the module to switch between the two antennas using the TI's WiLink 8 API or through register settings.
-
The power consumption of the WL1801MODGBMOCT varies depending on the operating mode. In Wi-Fi transmit mode, the module consumes around 350mA. In Bluetooth transmit mode, it consumes around 150mA. In standby mode, the module consumes around 10mA. Refer to the datasheet for detailed power consumption specifications.
